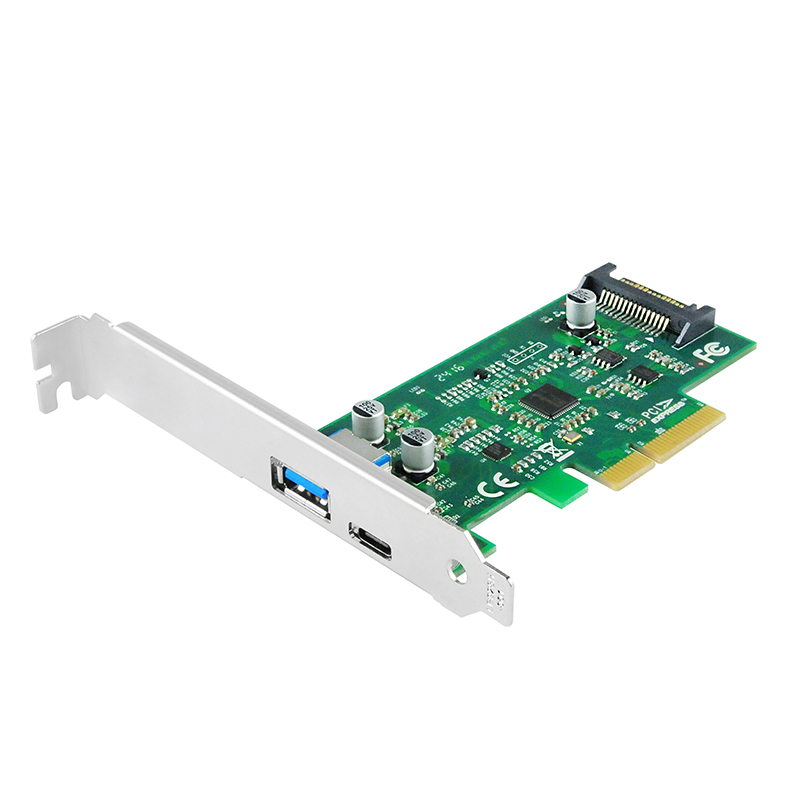

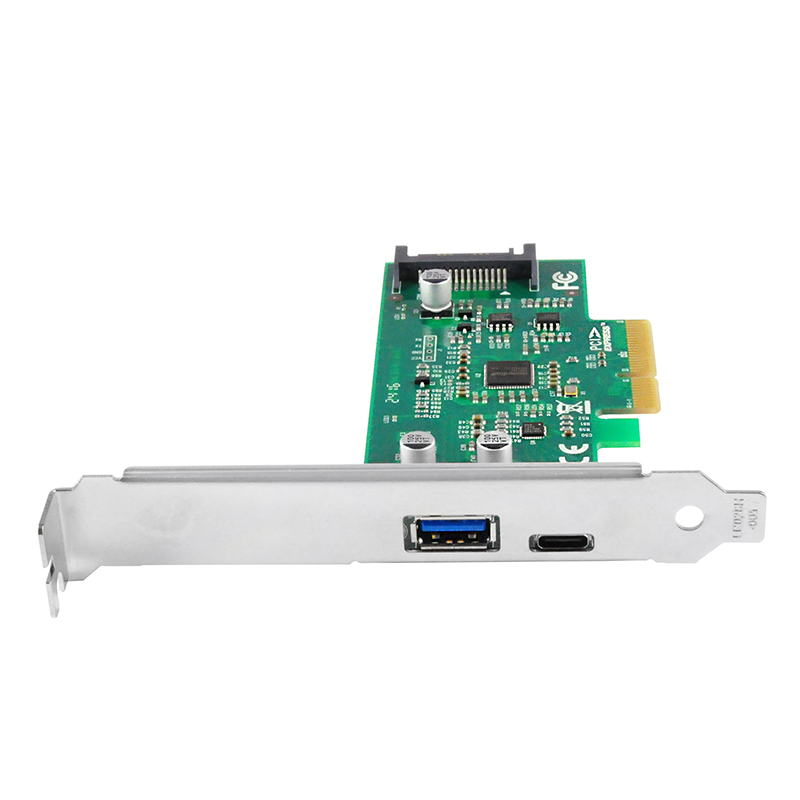

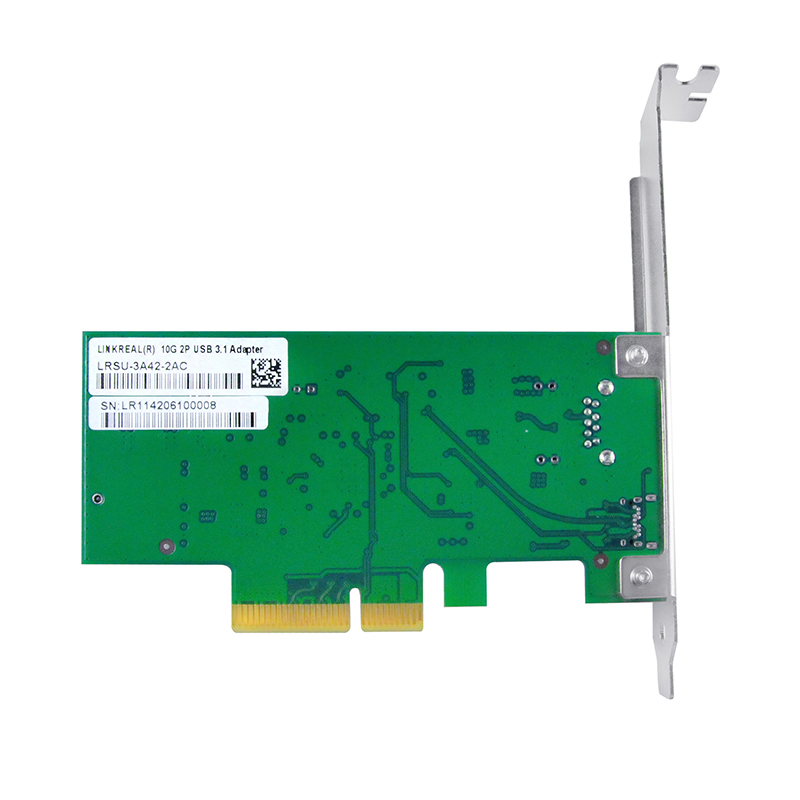

LRSU9A42-AC 10Gb/s PCIe x4 2-Port USB3.1 Adapter

Product number: LRSU9A42AC

Views:1090Times

Tags:

Product Model:LRSU9A42-AC
Product Name:2 Port PCIe x4 10Gb/s to USB 3.1 Type-A +Type-C Adapter
Main Chipset:ASM1142 & ASM1543
Interface Type:1*USB3.1 Type-A & 1*USB3.1 Type-C
Host Bus Type:PCIe 3.0 x4
  • Overview
  • Parameter
  • Related Products

LRSU9A42-AC can convert PCIe to USB 3.1 type-A and USB 3.1 Type-C ,the maximum transmission speed of USB 3.1 gen-ii can reach 10Gbps, support the hot plug function of USB device, especially the personal computer, and the consume electronic products and communication equipment provide faster and higher speed.

• Support PCI Express Gen III X2

• compatible with USB 3.1 specification Gen2
• compatible with USB plus SCSI protocol revision 1.0
• USB3.1 Gen-ii delivers up to 10Gbps
• compatible with USB 3.1 specification revision v2.0/1.0
• support USB data transfer rate of 10G/5G/480/12/1.5 Mbps
• extend an external USB3.1 super-fast +C port (DFP) on the system
• the maximum output current of type-c is 5V/3000mA
• the maximum output current of type-a is 5V/900mA
• 1 Type C female head, 1 external USB3.1 interface and 1 internal SATA power supply
• overcurrent protection is built into each USB port
• support Multiple INs
• support remote wake-up function for devices such as USB keyboard or mouse
• support Control, Bulk, Stream, Interrupt, Isochronous transmission type

Compliance with XHCI (extensible host controller interface) specification revision 1.1
2 external USB 3.1 sockets

Power input: 15-pin SATA cd-rom power connector

System requirements:

Windows 7 (X86/X64) Windows 8. X / 10 (X86/X64) (Windows in-box driver)

Support Linux 2.6.31 or above (Linux OS already implemented USB3.0 driver)


HARDWARE

Model

LRSU9A42-AC

Number of Drive

2

I/O Controller

ASM1142 ASM1543

Host Bus Type

PCI Express 3.0 x4

Interface

USB 3.1 Gen 2

PERFORMANCE

Type and Rate

10Gbps

UASP Support

USB 3.1 Gen 2-10 Gbit/s

CONNECTOR(S)

Connector Type(s)

1-    PCI Express x4 Male

External Ports

2-    USB Type-C + Type A (24 pin) USB3.1(10Gps) Female

Internal Ports

1-    SATA Power(15 pin) Plug

SOFTWARE

OS Compatibility

Windows 7,8,8.1,10 Windows Server 2008 R2,2012,2016

Linux 3.5 to 4.11 x LTS version only

SPECIAL REQUIREMENTS

System and Cable

PCIe enabled computer or server with a optional SATA Power connector

ENVIRONMENTAL

Humidity

15%-90%

Operating Temperature

5°C to 50 °C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL DIMENSION

Dimension

56mm x106mm

Weight

47g

WARRANTY INFORMATION

Warranty

2 Years

WHAT’S IN THE BOX

Included in Package

1-      PCI Express USB 3.1 Card

1-      Low profile bracket

1-      Full Height bracket(installed)
