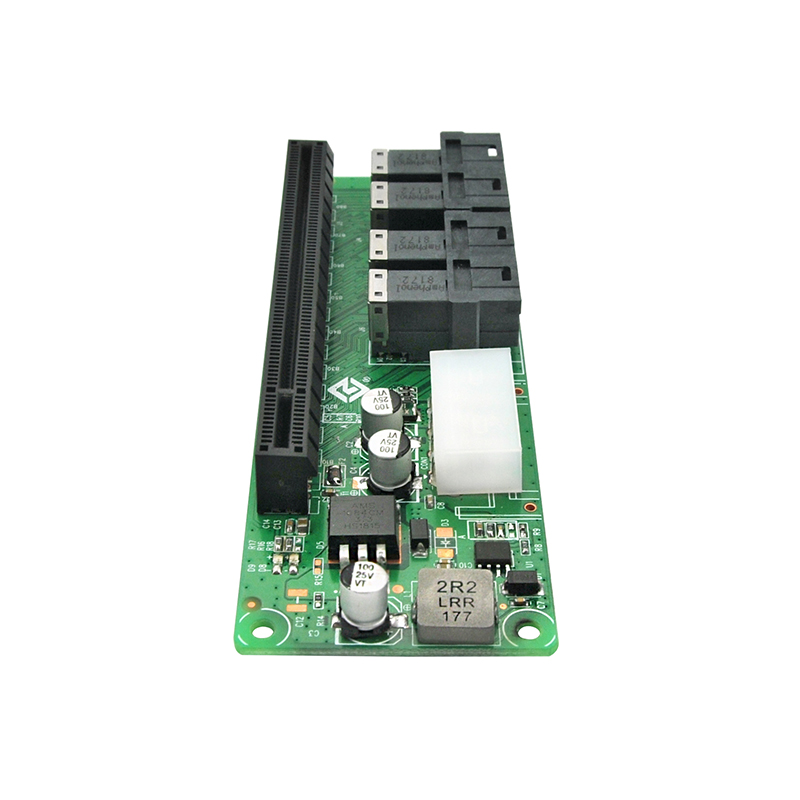

LRFC6941 4 Port SFF-8643 to PCIe x16 Slot Adapter

Product number: LRFC6941

Views:1807Times

Tags:

Product Model:LRFC6941
Product Name:4 Port SFF-8643 to PCIe x16 Slot Adapter
Interface Type:4*SFF-8643+4PIN Power Socket(12V) Connectors
Interface Bus Type:1*PCIe x16 slot
  • Overview
  • Parameter
  • Related Products

Product Description

LRFC 6941 is a Mini-SAS HD (SFF-8643) to PCIe x16 Slot Board, which provides Four PCIe x16 in connection to the PCIe switch host card. It can expand one PCIe Slots by plugging into the PCIe Host Adapters with 4 SFF-8643 connectors. All the network cards, graphic cards and video cards are supported for the PCIe slots. With standard 4 Pin /15 Pin power socket for stable expansion and output. It can flexibly built in all kinds of PCIe Devices, Servers and Terminal Extension Devices.


Technical Specifications

Primary PCIe Connector: Four Mini-SAS HD 4i Receptacle Connectors (SFF-8643)

Secondary PCIe Connector: PCIe x16 slots  Supports 8-lane PCI Express bandwidth

Power connector: One SATA 4 Pin / 15pin power connector for 12V & 3.3V

Technical specifications

Model

LRFC6941

Interface

SFF8643

CONNECTORS(S)

Connector

Mini-SAS HD (SFF-8643)

Environmental Parameter

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

120mm*42mm

Product Weight

45.5g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

4.43 [125 g]

WHAT'S IN THE BOX

Included in Package

4– SFF8643 to PCIe x16 Slot Adapter
